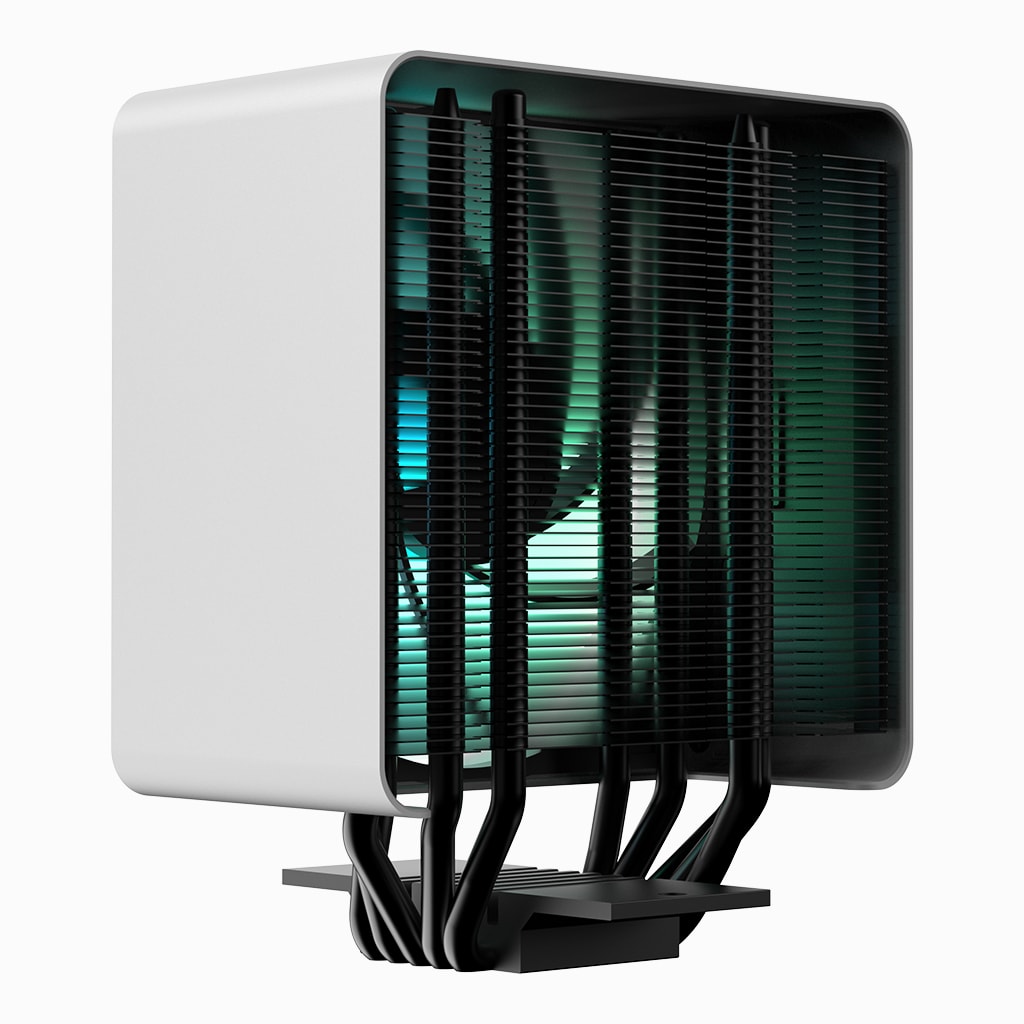

AP1-V
Powerful 5-heatpipe air cooler with aluminum frame
A New Standard
AP1-V boasts a 5-heatpipe design cased inside a professional-grade aluminum alloy frame, a powerful 245W TDP to handle huge workloads, and Hydro Bearing to keep it running for many years to come. AP1-V brings itself into our lineup with one thing in mind: announcing to the world that when it comes to air coolers, APNX doesn’t mess around.
Cutting-Edge Cooling Performance
AP1-V’s five 6mm heat pipes dissipate heat efficiently to make sure your CPU stays cool under intense workloads.
Enhanced Heat Capacity
The 245W Thermal Design Power (TDP) means AP1-V is a robust cooling solution for your high-performance PC.
Precision Engineering
With HCTT Heat Core Touch Technology, AP1-V achieves a seamless connection with the CPU, optimizing thermal conductivity and maintaining a stable operating temperature.
Every Detail Matters
The frame of AP1-V is crafted from aluminum alloy for a premium build on top of its heavy-duty performance.
Smooth and Reliable with Hydro Bearing
Hydro Bearing gives this cooler a longer lifespan and gives you a smoother and quieter overall experience.
Effortless Installation
You can install AP1-V without disassembling the fan to save yourself both time and effort.
It’s also compatible with high memory.
Secured Compatibility
AP1-V is fully compatible with Intel 1700/1200/15XX and AMD AM4/AM5 sockets, guaranteeing a seamless fit on a wide range of modern motherboards.
Extended Lifespan
An impressive MTBF of 80,000 hours ensures stable performance over the long run.
Specifications & Downloads
| Model | AP1-V ARGB |
| Base Material | Aluminum block with HCTT Heat Core Touch Technology |
| Fin Material | Aluminum |
| Heat pipe | Dia. 6mm x 5 |
| Dimension | With bracket: 128*92*157mm Without bracket: 128*76.5*157mm |
| TDP(Thermal Design Power) | 245 W |
| Socket | LGA 1700/1200/115X AM4/AM5 |
| Fan Dimensions (L x W x H) | 120mm*120mm*25mm |
| Fan Speed | PWM 600-1800 rpm |
| Fan Starting Voltage | 5V |
| Rated Voltage | 12V |
| Rated Current | 0.32 A |
| Power Consumption | 3.84 W |
| Air Pressure | 3.36 H2O/mm |
| Air Flow | 76.3 CFM |
| Fan Noise Level | 16.1-32.8 dBA |
| Bearing Type | Hydro bearing |
| MTBF | 80000 hrs |
AP1-V user manual download.
