C1
Performance and style, right out of the box.
A New Era
C1 is a premium mid-tower ATX case that brings together a beautiful new look, robust build quality, and impressive out-of-the-box cooling performance. This flagship case sets the record straight about APNX. We never compromise on quality.
Performance, Right Out of the Box
Equipped with premium APNX fans, C1 lets your high-end components breathe effortlessly within its carefully designed chambers.
Intuitive Design

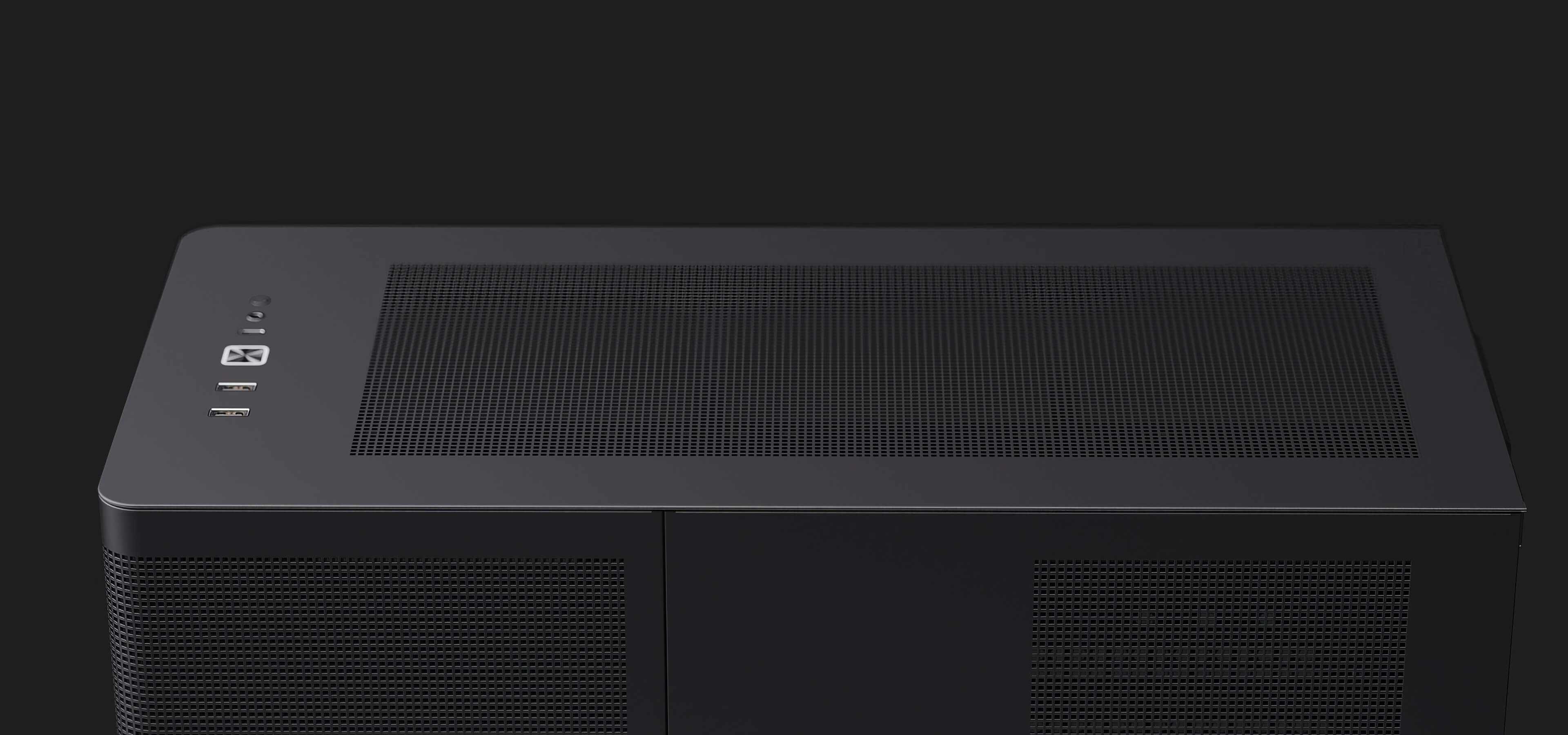

Improve thermal efficiency with a one-piece ‘L’ shaped metal panel with a large mesh area that optimizes front and side airflow. It’s in our DNA for design to follow enhanced performance.
Experience FP1 from APNX
The included APNX FP1 fans are stylish and powerful, as well as PWM and ARGB. Their 30mm thickness provides better performance than 25mm models.
Feel the Breeze
Turn your airflow up to 11 with eleven total PC fan slots. C1 has the potential to be a force of nature that stays effortlessly cool under any workload.
Cooling Options Galore
Elevate your cooling game with top and side 360mm liquid cooler support, ensuring your system stays as cool it looks. Stay chill and conquer the competition.
Supports Dual Radiators
Up to 360 mm
Aesthetics That Inspire
We see C1 as a work of art. Its sleek lines, premium finishing, and detailed crafting make it a sight to behold.
Installation Made Easy

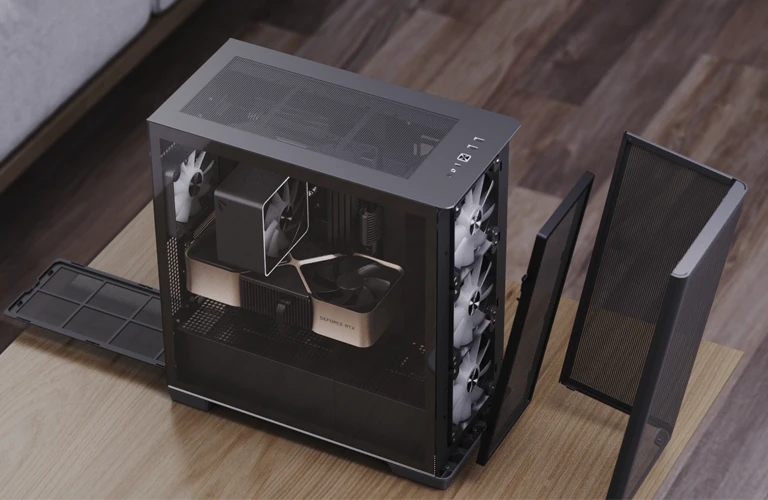

The quick-release panels make installation and maintenance a breeze. Inside the case, simply unscrew and remove the top cooling bracket for easy cooler installation.
Stay Fresh
The ultra-fine nylon mesh dust filter effectively traps tiny particles to extend the lifespan of your valuable components and save you from frequent cleaning.
Vertical GPU Holder Kit (Optional)
Vertical GPU Holder Kit 1 includes PCI-E flat line riser cable and is compatible for use with C1. This accessory is available for optional purchase from APNX.
Specifications & Downloads
| Model | C1 |
| Case Type | Mid Tower |
| Colors | Black, White, ChromaFlair |
| Body Material | SGCC |
| Front Panel Material | SECC |
| Steel Thickness |
0.8mm |
| Motherboards | ATX/Micro ATX/mini-ITX |
| Case Dimensions (Internal) | 230 x 477 x 440 mm (W x H x D) |
| Case Dimensions (Overall) | 230 x 502 x 464 mm (W x H x D) |
| 3.5” Drive Bays | 3 Max. (3 x 3.5”/2.5″) |
| 2.5” Drive Bays | 3 Max. (3 x 2.5”/3.5”) |
| Expansion Slots | 7 |
| GPU Clearance | Supports GPU up to 395mm |
| CPU Cooler Clearance | Supports CPU cooler up to 166mm |
| Air Cooling | Front: 120mm x 3 or 140mm x 3 (Max.) (140mm ARGB Fan x 3 included) Top: 120mm x 3 or 140mm x 2 (Max.) Side: 120mm x 3 (Max.) Rear: 120mm x 1 (Max.) (120mm ARGB Fan x 1 included) CPU: 120mm x 1 (Max.) |
| Liquid Cooling | Top: 120/240/280/360mm Radiator (Optional) Side: 120/240/360mm Radiator (Optional) Rear: 120mm Radiator (Optional) |
| I/O Ports | USB3.0 x 2 | USB C x 1 | HD Audio & Mic. |
| Internal Cable Management Depth | 40mm |
| Power Supply | ATX PSU (Including cables, up to 270mm) (Optional) |
C1 user manual download.
