C1-R

Performance and
  • Style, Refreshed.
OVERVIEW

A New Era

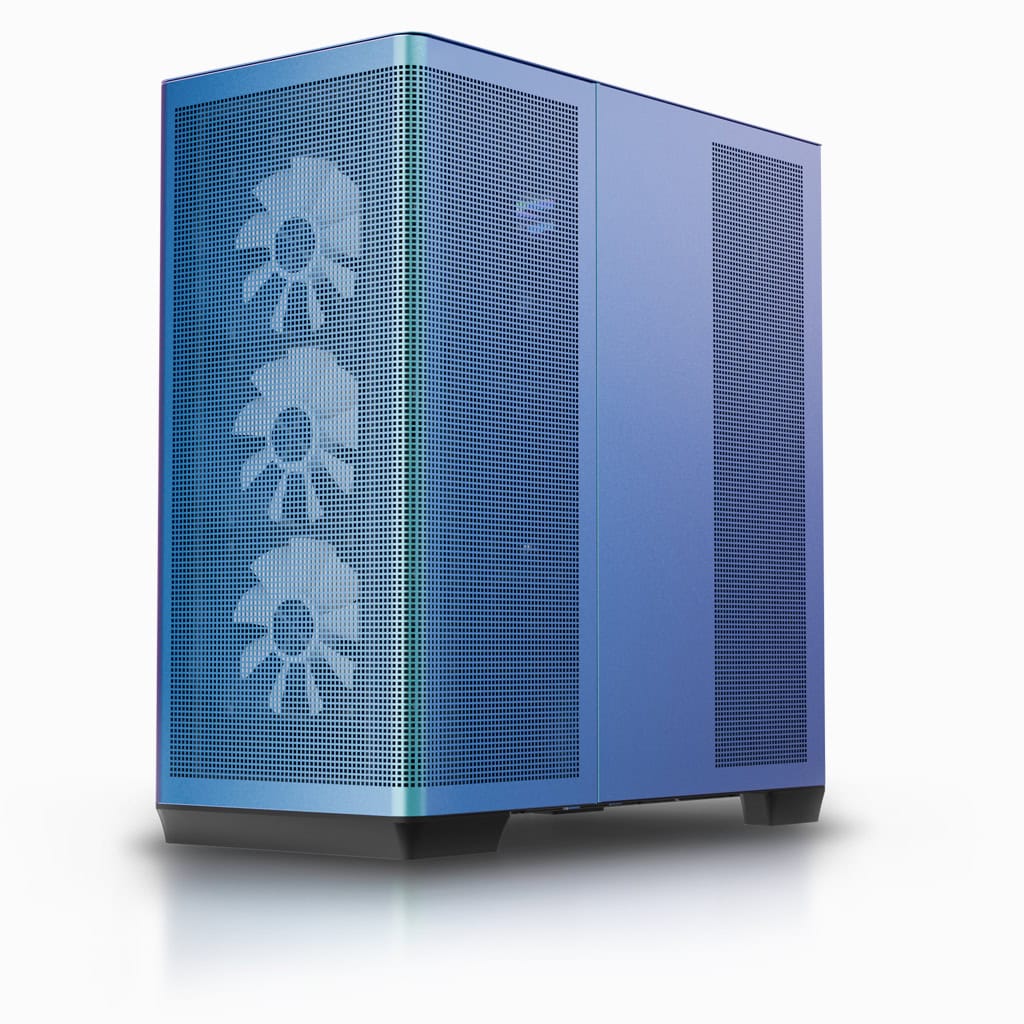

C1-R is a premium mid-tower ATX case that brings together a beautiful new look, robust build quality, and impressive out-of-the-box cooling performance. This refreshed edition features a redesigned top cooling bracket and supports ASUS & MSI ATX motherboards with backward-facing connectors for exceptional cable management. This iF and Red Dot Design Award-winning case excels in cooling, airflow, and compatibility. APNX never compromises on quality.

PERFORMANCE

Performance, Right Out of the Box

Equipped with premium APNX fans, C1-R lets your high-end components breathe effortlessly within its carefully designed chambers.

Intuitive Design

Improve thermal efficiency with a one-piece ‘L’ shaped metal panel with a large mesh area that optimizes front and side airflow. It’s in our DNA for design to follow enhanced performance.

Experience FP1 from APNX

Select models of C1-R include stylish and powerful APNX FP1 fans. In addition to PWM and ARGB capabilities, their 30mm thickness provides improved performance over 25mm models.

74.6 CFM
Airflow

500-1600 RPM
PWM Fan

30-50 %
Better performance

Feel the Breeze

Turn your airflow up to 11 with eleven total PC fan slots. C1-R has the potential to be a force of nature that stays effortlessly cool under any workload.

11max
Fan Slots

Up to 166 mm
CPU Cooler

4 x 120 mm
PWM ARGB Fan Included
(C1-R-BK-v1 / C1-R-WT-v1 / C1-R-CF-v1 )

4 x 120 mm
PWM Fan Included
(C1-R-BK-v3 / C1-R-WT-v3 / C1-R-CF-v3 )

Cooling Options Galore

Elevate your cooling game with top and side 360mm liquid cooler support, ensuring your system stays as cool it looks. Stay chill and conquer the competition.

Supports Dual Radiators

Up to 360 mm

Designed for High-End Components

Yes, C1-R is gorgeous – but it’s also a powerhouse that can accommodate latest gaming GPUs and the most powerful CPU coolers.

CRAFTSMANSHIP

Aesthetics That Inspire

We see C1-R as a work of art. Its sleek lines, premium finishing, and detailed crafting make it a sight to behold.

Cable Management Upgrades

C1-R supports ASUS & MSI motherboards with backward-facing connectors to keep cables out of sight. As a final touch, the redesigned top cooling bracket leaves extra space for CPU power cable management.

Installation Made Easy

The quick-release panels make installation and maintenance a breeze. Inside the case, simply unscrew and remove the top cooling bracket for easy cooler installation.

Stay Fresh

The ultra-fine nylon mesh dust filter effectively traps tiny particles to extend the lifespan of your valuable components and save you from frequent cleaning.

Vertical GPU Holder Kit 1 (Optional)

Vertical GPU Holder Kit 1 includes PCI Express® 5.0 X16 flat line riser cable and is compatible for use with C1-R. This accessory is available for optional purchase from APNX

SPECS

Specifications & Downloads

Model C1-R-BK-v1, C1-R-WT-v1, C1-R-CF-v1, C1-R-BK-v3, C1-R-WT-v3, C1-R-CF-v3
Case Type Mid Tower
Colors Black, White, ChromaFlair
Body Material SGCC
Front Panel Material SECC
Steel Thickness
0.8mm
Motherboards ATX/Micro ATX/mini-ITX
Case Dimensions (Internal) 230 x 477 x 440 mm (W x H x D)
Case Dimensions (Overall) 230 x 502 x 464 mm (W x H x D)
3.5” Drive Bays 3 Max. (3 x 3.5”/2.5″)
2.5” Drive Bays 3 Max. (3 x 2.5”/3.5”)
Expansion Slots 7
GPU Clearance Supports GPU up to 395mm
CPU Cooler Clearance Supports CPU cooler up to 166mm
Air Cooling Front: 120mm x 3 or 140mm x 3 (Max.)
(C1-R-BK-v1 / C1-R-WT-v1 / C1-R-CF-v1 : 120mm PWM ARGB Fan x 3 included ; C1-R-BK-v3 / C1-R-WT-v3 / C1-R-CF-v3 120mm PWM Fan x 3 included)
Top: 120mm x 3 or 140mm x 2 (Max.)
Side: 120mm x 3 (Max.)
Rear: 120mm x 1 (Max.)
(C1-R-BK-v1 / C1-R-WT-v1 / C1-R-CF-v1: 120mm PWM ARGB Fan x 1 included ; C1-R-BK-v3 / C1-R-WT-v3 / C1-R-CF-v3 120mm PWM Fan x 1 included)
CPU: 120mm x 1 (Max.)
Liquid Cooling Top: 120/240/280/360mm Radiator (Optional)
Side: 120/240/360mm Radiator (Optional)
Rear: 120mm Radiator (Optional)
I/O Ports USB3.0 x 2 | USB C x 1 | HD Audio & Mic.
Internal Cable Management Depth 40mm
Power Supply ATX PSU (Including cables, up to 270mm) (Optional)

C1-R user manual download.
