Redefined Cooling Dynamics, Performance with Personality.

OVERVIEW

Introducing V1

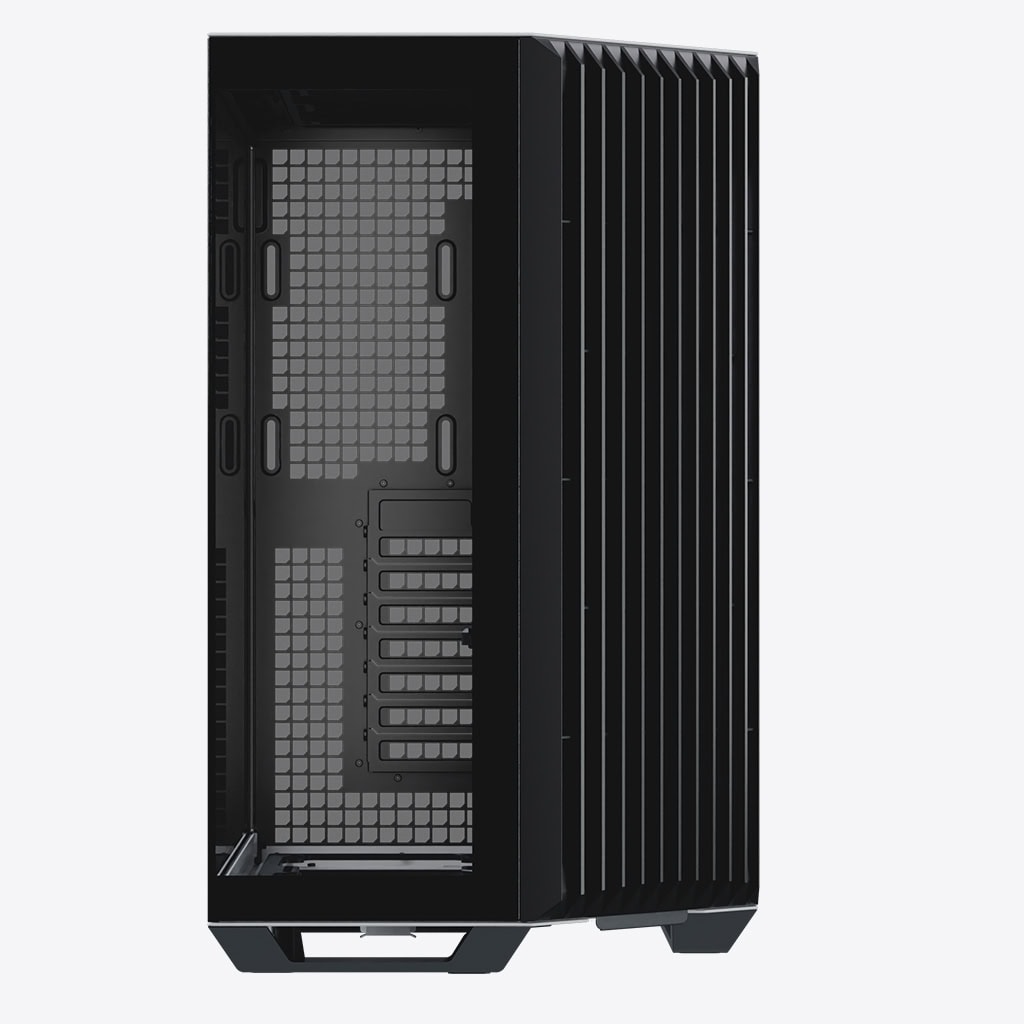

The APNX V1 mid-tower case combines customizable cooling precision with a unique 45° angular intake design, all housed within a sleek, panoramic dual-chamber structure.
Built for performance and user experience, the mechanism design offers optimized cooling options for GPU and CPU, with quick-release cooling brackets & panels for easy access, and neat & tidy cable management. Boasting a full tempered glass panoramic view and the choice of wood paneling for a refined touch, the V1 is perfect case for gamers, content creators, and PC builders seeking performance with a personality.

PERFORMANCE

Unique thermal design

This innovative design within a dual chamber panoramic case structure features a 45° angular intake which enhances overall airflow and thermal efficiency for both the GPU and CPU, all while preserving the hallmark full tempered glass view. The angular intake panel supports three 12cm, two 14cm, and up to two 16cm fans.

Form follows function

The top mesh ventilation pattern visualizes the unique path of the airflow within, intuitively demonstrating the cooling dynamics of the angular intake while improving top airflow.

Personalize Your Performance

Adjustable motherboard position mechanism

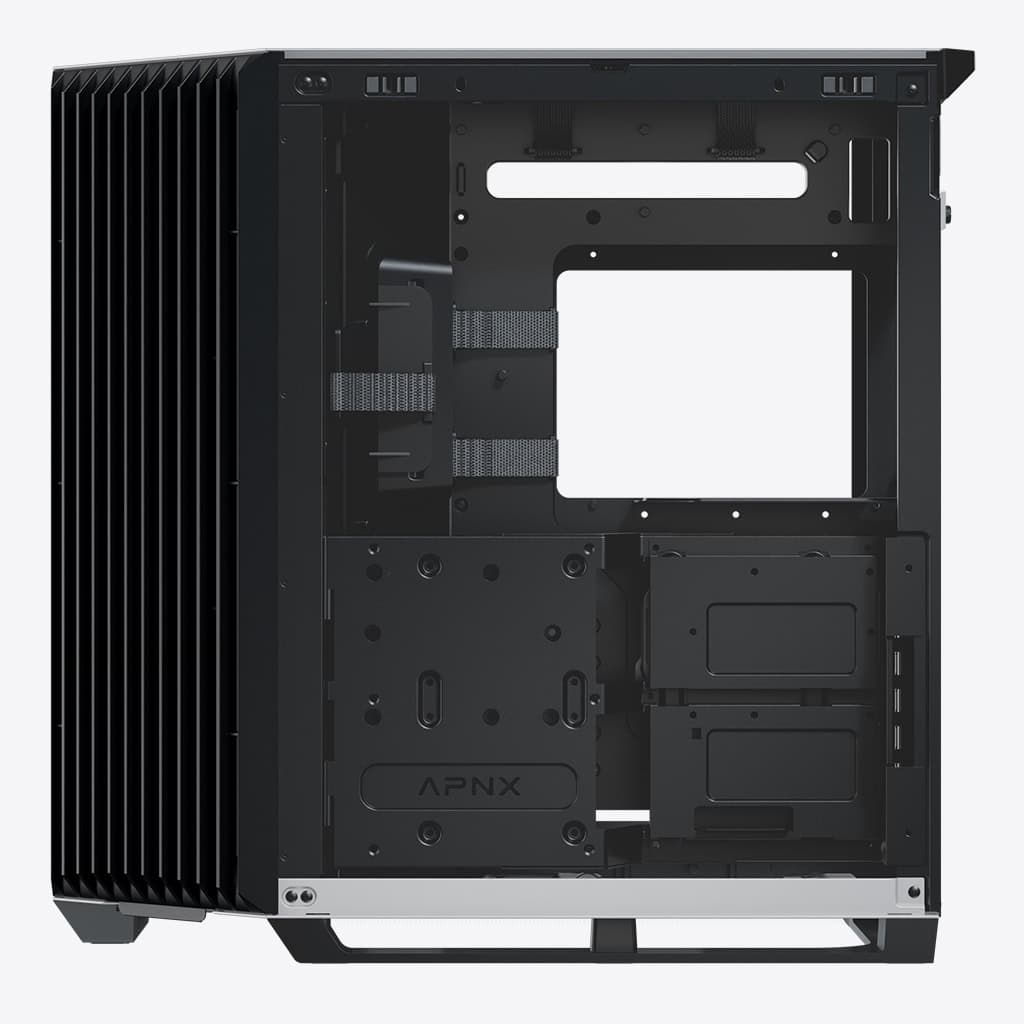

The V1 offers two motherboard installation positions to grant more space for enhancing GPU airflow and cooling performance or for a comfortable installation of thicker radiators/fans to prioritize CPU cooling.

Take control of your cooling

Enjoy a wide array of potential cooling configurations with ten fan slots plus support for liquid coolers up to 360mm and CPU coolers up to 170mm.

360mm
Radiator

140mm x 2
Fan

360mm
Radiator

160mm x 2
Fan

360mm
Radiator

140mm x 2
Fan

CRAFTSMANSHIP

A statement of style

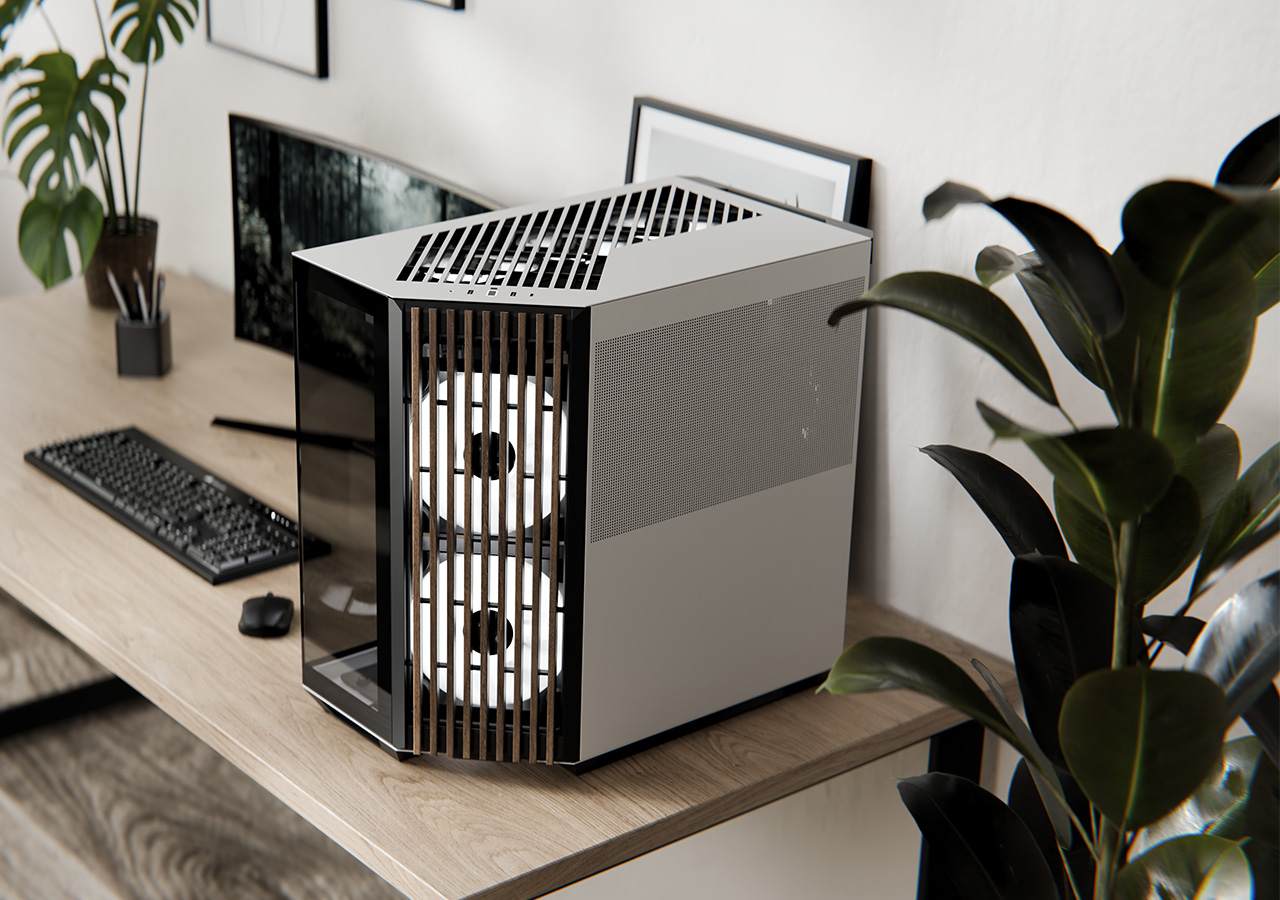

Available in black, white, and a black-white mixed variants, V1 also features our first-ever wood-accented panel, crafted from solid walnut or ash wood with a protective finish. Choose a look that complements your style.

Easy access

The top, front-angled, and both side panels* are designed to lock and snap without the need to fidget with tools or screws. The V1 includes quick-release cooling brackets with minimal screws at the front-angled and bottom positions, ensuring easy installation for any fans or radiators.

*The screw mounting points on both side panels are designed to keep parts secured during the shipping process. Consumers generally do not need to screw them back in if the PC build will not be shipped or moved afterward.

Redesigned storage bracket

The user-friendly, hinged storage brackets allow for a streamlined setup and the installation of many storage devices.

Supports 2 x 3.5” HDD and 4 x 2.5” SSD or up to 6 x 2.5” SSD.

GPU structural support

A GPU mount with adjustable height and swivel angle is included so your heavy graphics card (up to 395mm in length) is in good hands.

Neat and tidy cable management

V1 is designed for intuitive cable management. Clear cable channels with included velcro ties and rubber pathways in the side panel ensure a super-clean appearance for your build.

Hassle-free maintenance

V1 includes removable filters on the bottom, side, and front-angled panels, plus a built-in top filter for hassle-free cleaning.

Smart bracket with branding

A special bracket design addresses the void created by the adjustable motherboard displacement, also serving as a stylish brand decoration.

Vertical GPU Holder Kit (Optional)

Vertical GPU Holder Kit 2 by APNX is a vertical GPU mount with an included PCI Express® 5.0 X16 flat line riser cable, allowing the graphics card to run at full speed. It is steel-based for ultimate durability and compatible for use with V1. Available in black or white.

SPECS

Specifications & Downloads

Model V1-BK-v1 / V1-BW-v1 / V1-WT-v1 / V1-W-BK-v1 / V1-W-BW-v1 / V1-W-WT-v1
Case Type Mid Tower
Colors Black, White, Black/White
Body Material SGCC
Front Panel Material ABS
Steel Thickness
0.8mm
Motherboards ATX/Micro ATX/mini-ITX
Case Dimensions (Internal) 290 x 460 x 480mm (W x H x D)
Case Dimensions (Overall) 290 x 485.5 x 500mm (W x H x D)
3.5” Drive Bays 2 Max. (2 x 3.5”/2.5″)
2.5” Drive Bays 6 Max. (4 x 2.5”and 2 x 2.5″/3.5”)
Expansion Slots 7
GPU Clearance Supports GPU up to 395mm (W/O radiator in the front-right position)
CPU Cooler Clearance Supports CPU cooler up to 170mm
Air Cooling Front-Right: 120mm x 3 or 140mm x 2 or 160mm x 2 (Max.)
Top: 120mm x 3 or 140mm x 2 (Max.)
Bottom: 120mm x 3 (Max.) or 140mm x 2 (Max.)
Rear: 120mm x 1 (Max.)
Liquid Cooling Front-Right:120/140/240/280/360mm Radiator (Optional) Top: 120/140/240/280/360mm Radiator (Optional)
Bottom: 120/140/240/280/360 Radiator (Optional) (140/280 Radiator: When M/B is at upper position; It’s not recommended to install a liquid cooling at the bottom.)
Rear: 120mm Radiator (Optional)
Filters Top (Built-in), Front-Right (Removable), Side (Removable), Bottom (Removable)
I/O Ports Type C x 1 | USB3.2 Gen 1 Type -A x 2 | Audio & Mic.
Internal Cable Management Depth 90mm
Power Supply ATX PSU (Including cables, up to 220mm) (Optional)

V1 user manual download.
